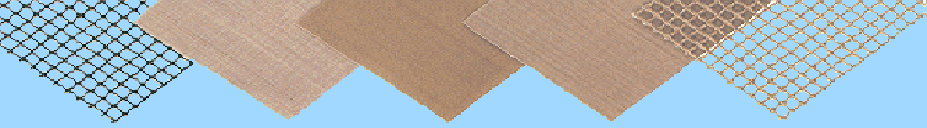

PTFE COATED FIBERGLASS FABRICS


Styles Available:

Porous / Non-Porous · Dielectric · Crease & Tear Resistant · Conductive / Anti-Static · Open Mesh · Specialty Fabrics

Applications:

HPPGLAS PTFE COATED GLASS OPEN MESH SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 MAX. WIDTH
(ins.)		 MESH OPENING
(ins.)		 WEIGHT
OZ/SQ YD (APPROX.)
OMG-9851 PTFE Coated Open Mesh 62 1/16 14.4
OMG-0951 PTFE Coated Open Mesh 150 3/16 12.8
OMG-0973 PTFE Coated Open Mesh 150 5/16 12.8
OMG-5372 PTFE Coated Open Mesh 83 1/4 Prop.
OMG-6372 PTFE Coated Open Mesh 83 5/16 Prop.
NCG-9851 PTFE Coated Nomex® 150 1/16 15.5
NCG-0951 PTFE Coated Nomex® 150 1/4 14.5
NCG-0951HW PTFE Coated Nomex® 110 1/4 36.5
KCG-9851 PTFE Coated Kevlar® 82 1/16 6.7
KCG-0951 PTFE Coated Kevlar® 72 3/16 7.8
HPPGLAS PTFE COATED GLASS CONDUCTIVE / ANTI-STATIC SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 NORMAL
WIDTH (ins.)		 NORMAL
THICKNESS (ins.)		 WEIGHT
OZ/SQ YD (APPROX.)
CGF-3 Conductive 3 mil 38 .0030. 4.4
CGF-5 Conductive 5 mil 38 .0050 7.5
CGF-6 Conductive 6 mil 38 .0060 8.6
CGF-10 Conductive 10 mil 38 .0100 15.0
CGF-13 Conductive 13 mil 59 .0130 20.0
CGF-14 Conductive 14 mil 38 .0140 21.0
HPPGLAS PTFE COATED GLASS CREASE & TEAR RESISTANT SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 NORMAL
WIDTH (ins.)		 NORMAL
THICKNESS (ins.)		 WEIGHT
OZ/SQ YD
CTRF-3 Crease & Tear-Resist 3 mil 38 .0030. 4.3
CTRF-5 Crease & Tear-Resist 3 mil 38 .0050 7.6
CTRF-6 Crease & Tear-Resist 3 mil 38 .0060 8.7
CTRF-10 Crease & Tear-Resist 3 mil 38 .0100 15.0
CTRF-14 Crease & Tear-Resist 3 mil 38 .0140 21.0
HPPGLAS PTFE COATED GLASSPOROUS SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 NORMAL
WIDTH (ins.)		 NORMAL
THICKNESS (ins.)		 WEIGHT
OZ/SQ YD (APPROX.)
PF-2 Porous 2 mil 38/50 .0020 8
PF-3 Porous 3 mil 38/50 .0030 1.8
PF-4 Porous 4 mil 38 .0040 3.6
PF-5 Porous 5 mil 38 .0050 4.2
PF-8 Porous 8 mil 38 .0080 4.8
PF-10 Porous 10 mil 38/44 .0100 6.7
PF-14 Porous 14 mil 38/62 .0140 10.7
HPPGLAS PTFE COATED GLASS FABRIC SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 NORMAL
WIDTH (ins.)		 NORMAL
THICKNESS (ins.)		 WEIGHT
OZ/SQ YD (APPROX.)
PGF-3 Premium 3 mil 38/50 .0030 4.3
PGF-4 Premium 4 mil 38 .0040 5.2
PGF-5 Premium 5 mil 38 .0050 7.5
PGF-6 Premium 6 mil 38 .0060 8.6
PGF-8 Premium 8 mil 38 .0080 12.2
PGF-10 Premium 10 mil 38/50 .0100 15.0
PGF-11 Premium 11 mil 38 .0110 17.0
PGF-13 Premium 13 mil 38 .0130 20.0
PGF-19 Premium 14 mil 38 .0140 27.0
PGF-20 Premium 20 mil 38 .0200 30.0
SGF-3 Standard 3 mil 38/50 .0030 4.3
SGF-4 Standard 4 mil 38 .0040 5.2
SGF-5 Standard 5 mil 38/50/60 .0050 7.5
SGF-6 Standard 6 mil 38 .0060 8.6
SGF-10 Standard 10 mil 38/50 .0100 15.0
IGF-3 Industrial 3 mil 40 .0030 4.2
IGF-5 Industrial 3 mil 40 .0050 7.5
IGF-6 Industrial 3 mil 40 .0058 8.7
IGF-10 Industrial 3 mil 40 .0100 14.5
IGF-14 Industrial 3 mil 40 .0130 19.3
MGF-3 Mechanical 3 mil 38/50 .0030 2.8
MGF-5 Mechanical 5 mil 38 .0050 2.8
MGF-6 Mechanical 6 mil 38 .0060 2.8
MGF-10 Mechanical 10 mil 38 .0100 2.8
HPPGLAS PTFE COATED GLASS DIELECTRIC SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 NORMAL
WIDTH (ins.)		 NORMAL
THICKNESS (ins.)		 WEIGHT
OZ/SQ YD (APPROX.)
DGF-3 Dielectric 3 mil 38 .0030 4.7
DGF-5 Dielectric 5 mil 38 .0050 8.2
DGF-6 Dielectric 6 mil 38 .0060 9.2
DGF-10 Dielectric 10 mil 38 .0100 16.1
HPPGLAS PTFE COATED GLASS SPECIALITY SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 NORMAL
WIDTH (ins.)		 NORMAL
THICKNESS (ins.)		 WEIGHT
OZ/SQ YD (APPROX.)
HPPGLAS 381 Semi-porous 27 mil 62 .0200 20.4
HPPGLAS 5651 Heavyweight NP 24 mil 174 .0240 28.0-30.0
HPPGLAS 4851 Semi-porous 37 mil 62 .0370 29.8
HPPGLAS 9851 Porous 25 mil 62 .0250 14.3
HPPGLAS PTFE COATED KEVLAR SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 NORMAL
WIDTH (ins.)		 NORMAL
THICKNESS (ins.)		 WEIGHT
OZ/SQ YD
KCF-5 PTFE Coated Kevlar® 50 .0050. 7.0
KCF-6 PTFE Coated Kevlar® 50 .0060 7.6
KCF-7 PTFE Coated Kevlar® 50 .0070 N/A
KCF-10 PTFE Coated Kevlar® 50 .0100 11.0
KCF-14 PTFE Coated Kevlar® 50 .0140 N/A
KCF-20 PTFE Coated Kevlar® 150 .0200 15.2
KCF-28 PTFE Coated Kevlar® 52 .0280 N/A
HPPGLAS SILICONE COATED GLASS SERIES
ITEM
NUMBER		 PRODUCT
DISCRIPTION		 COLOR NORMAL
WIDTH (ins.)		 NORMAL
THIICKNESS (INS.)
SCG-14R Silicone Coated 14 mil Red 38 .0140
SCG-14W Silicone Coated 14 mil White 38 .0140
SCG-15R Silicone Coated 15 mil Red 38 .0150
SCG-15W Silicone Coated 15mil White 38 .0150
SCG-15G Silicone Coated 15 mil Gray 38 .0150
SCG-18W Silicone Coated 18 mil White 38 .0180
SCG-19R Silicone Coated 19 mil Red 50 .0190
SCG-19W Silicone Coated 19 mil White 50 .0190
SCG-23R Silicone Coated 23 mil Red 38 .0230
SCG-23W Silicone Coated 23 mil White 38 .0230
SCG-25R One Side Coated 25 mil Red 48 .0250
SCG-32W Silicone Coated 32 mil White 38 .0320
SCG-40R 3-Ply; 1 Side Coated 40 mil Red 50 .0400
SCG-40W 3-Ply; 1 Side Coated 40 mil White 50 .0400
SCG-40BR 2-Ply; 1 Side Coated 40 mil Brown 50 .0400
SCG-40BK 2-Ply; 1 Side Coated 40 mil Black 50 .0400
SCG-60R 3-Ply; 1 Side Coated 60 mil Red 50 .0600
SCG-60W 3-Ply; 1 Side Coated 60 mil White 50 .0600
PTFE Coated Fiberglass Release Sheets
PRODUCT STD 3-MIL STD 5-MIL STD 6-MIL STD 10-MIL
NOMINAL THICKNESS (in.) .003 .005 .006 .010
FINISHED WEIGHT (lbs./sq.yd.) .25 .45 .54 .90
BREAKING STRENGTH(lbs./in.) 70 120 120 200
OPERATING TEMPERATURES (°F) -415 TO 600 -415 TO 600 -415 TO 600 -415 TO 600
DIELECTRIC STRENGTH (volts per mil) 600 600 600 500
STANDARD WIDTHS (in.) 38·50·80 38·50·60 38·50 38·50

Advantages:
